CoreTek Reps Q1 2026 Technical Update
Welcome to the inaugural Q1 2026 edition of the CoreTek Technical Update. The purpose of this newsletter is to bring value to our partners and deliver new solutions along with insights from the manufacturers that we represent.
In this issue, we explore the modular versatility of the new CPI VersaEdge platform, the unprecedented fiber densities of Leviton's STRATA system, and the immersion-ready capabilities of the TORRENT product family. There are also opportunities for some BICSI CEC's and formal local training. Our goal is to ensure you have the data and local resources required to design resilient, future-ready infrastructure for your clients.

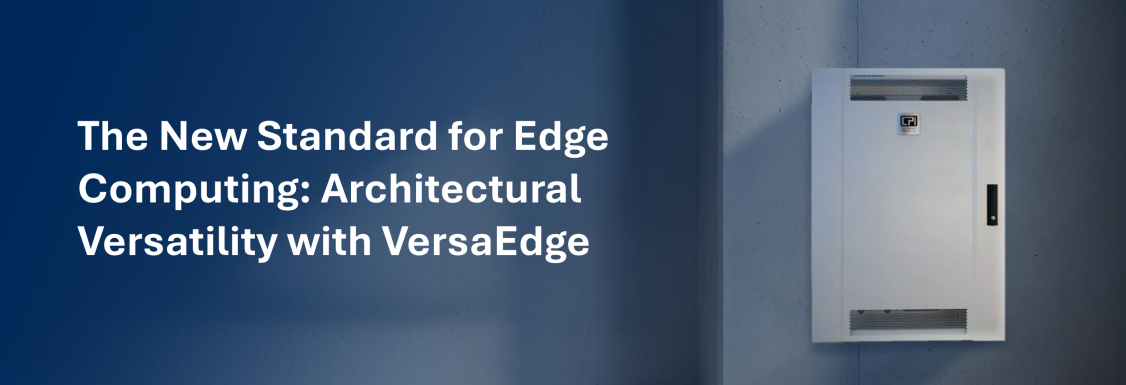

The evolution of edge environments is demanding a shift away from static, low-profile enclosures toward modular platforms capable of supporting high-density compute and storage. As thermal loads increase and physical footprints shrink, traditional wall-mount solutions often fail to meet the rigorous demands of modern distributed IT. To address this, CoreTek is proud to introduce the Chatsworth VersaEdge Wall-Mount Cabinet to our Pacific Northwest partners. This highly modular, UL Listed enclosure is engineered to bridge the gap between basic cabinetry and heavy-duty industrial housings, providing a scalable framework for 3U, 6U, or 9U configurations.
-
Thermal management is the cornerstone of the VersaEdge design. The cabinet is engineered to support passive heat dissipation of up to 10 kW through natural airflow and perforated ventilation patterns. For more demanding active applications, optional energy-efficient fan kits and magnetic blanking panels allow for seamless scaling to accommodate higher heat loads without sacrificing interior space. This focus on thermal stability safeguards sensitive equipment and extends service life in environmentally controlled indoor spaces.
-
Architectural flexibility is further enhanced by the cabinet's 625 lb (136 kg) static load rating and its support for both vertical and horizontal equipment orientations. The 19" rails are depth-adjustable, accommodating evolving hardware configurations from UPS systems to high-density switches. For deployments requiring high levels of physical security, such as retail or payment processing, the VersaEdge offers PCI-DSS-aligned features, including lockable, tamper-resistant construction and optional electronic access control (12V or 12V SSI).
-
Finally, the platform prioritizes rapid deployment and serviceability. Features such as a 180-degree swinging door and a tool-less removable cover provide unobstructed access to the interior, significantly reducing "Day 2" maintenance time. With integrated top and bottom cable entry points and compatibility with Universal Accessory Panels for fiber and copper management, the VersaEdge offers a sophisticated, integrated solution for the modern network edge.
As AI workloads and hyperscale requirements redefine data center architecture, physical layer density and thermal management have become the industry's most critical bottlenecks. Leviton is continuing to deliver new innovations to respond to these bottlenecks.
STRATA
Leviton's new STRATA structured cabling platform addresses these challenges by delivering industry-leading densities (up to 3,456 fibers in a single rack unit). This is achieved through MMC connectivity, which offers three times the port density of traditional MPO connectors. To ensure supply chain reliability for these high-count fiber builds, Leviton has secured US Conec certification across five factory sites for the precision manufacturing of MMC assemblies. This provides a robust foundation for mission-critical AI infrastructure.
TORRENT
Complementing this densification is the TORRENT line of immersion-ready solutions, which are engineered for the industry's shift toward liquid cooling. Validated per OCP Materials Compatibility standards, TORRENT copper and fiber products maintain signal integrity and material stability even when fully submerged in dielectric cooling fluids. This allows consultants to design aggressive thermal strategies for AI clusters without compromising long-term reliability.
-
PARADIGM Extended Distance System: Prepare to shift your expectations for copper distance. Launching in Q2 2026, the PARADIGM system, featuring Stadion cable, will be the industry's first Cat 6 compliant solution to support 1G Ethernet and Type 4 PoE at distances up to 225 meters. This breakthrough will allow for the consolidation of telecommunications rooms and expanded reach for edge devices. Stay tuned for full specification releases and design guides next quarter.
To further support our consultants in developing robust, future-ready infrastructure, we are pleased to highlight our dedicated local resource from Leviton. Having a direct line to a Specification Engineer ensures that your project designs adhere to the latest standards and utilize the most effective solutions.
Aaron Smith, RCDD | Specification Engineer, Leviton
Email: aarons.smith@leviton.com
Phone: 253-256-8181
Training Center CEC Opportunities:
• Exponential Evolution – Keeping Pace with AI Network Innovations - 1 BICSI CEC
• Honing the Edge: Understanding Edge Data Center Applications - 1 BICSI CEC
• Mastering Power Distribution for High-Density GPU and AI Applications - 1 BICSI CEC
Schedule a Lunch & Learn
CoreTek Reps is prepared to host a number of educational discussions over lunch at your office, for your convenience, a few suggestions are below:
• New CPI products in 2026
• New Leviton Products in 2026
• Nextivity - Introduction to Cellular DAS
Closing Statement
CoreTek remains committed to serving as your technical partner in the Pacific Northwest. Whether you require a deep-dive on immersion cooling or a hands-on demo of the VersaEdge cabinet, our team is here to provide the expertise your projects demand. We look forward to collaborating with you on your next design.
